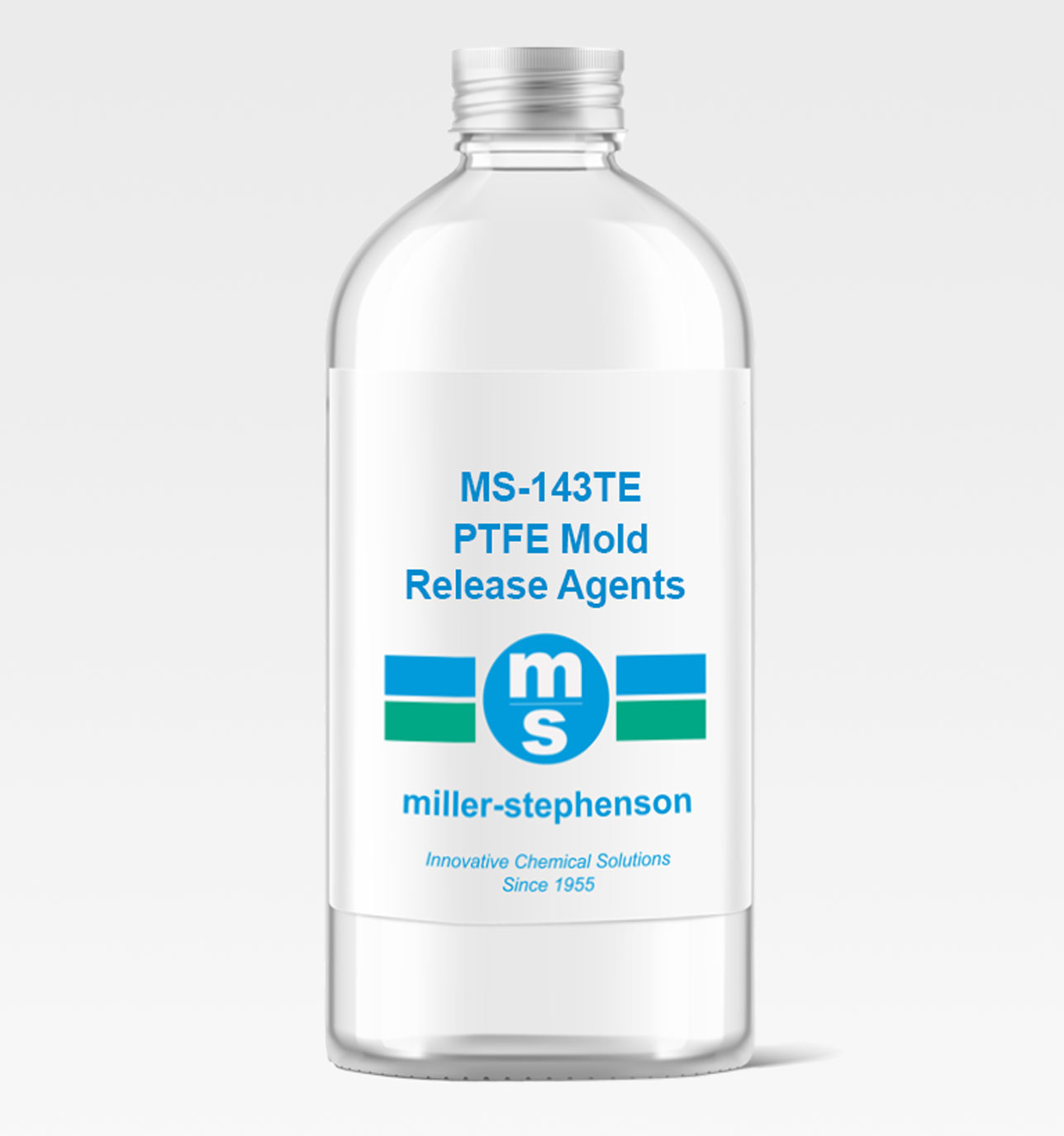

PTFE Mold Release Agents | MS-143TE

PTFE Mold Release Agents | MS-143TE

MS-143TE was developed as an efficient, economical and universal release agent. This formulation is a nonflammable, non-ozone depleting release agent/dry lubricant, containing a suspension of low-molecular PTFE (polytetrafluoroethylene) fluoropolymers.  As a dry lubricant, MS-143TE minimizes “slip-stick” and is ideal for low speed, light load applications. MS-143TE offers the following benefits:

  • Enhanced release agent durability/adhesion
  • Efficient and consistent release of molded parts
  • Outstanding lubricity (low coefficient of friction)
  • Nonflammable, Non-ozone depleting formulation
  • Non-migrating; Non-staining
CLICK HERE TO SEND INQUIRY OR REQUEST A QUOTE
Category: Tags: , , , , ,
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT

PTFE Mold Release Agents | MS-143TE

Superior Utility; Robust Release Agent Performance; Highly Cost-Effective

MS-143TE was developed as an efficient, economical and universal release agent. This PTFE mold release agents is a nonflammable, non-ozone depleting release agent/dry lubricant, containing a suspension of low-molecular PTFE (polytetrafluoroethylene) fluoropolymers.  As a dry lubricant, MS-143TE minimizes “slip-stick” and is ideal for low speed, light load applications. MS-143TE offers the following benefits:

  • Enhanced release agent durability/adhesion
  • Efficient and consistent release of molded parts
  • Outstanding lubricity (low coefficient of friction)
  • Nonflammable, Non-ozone depleting formulation
  • Non-migrating; Non-staining

Miller-Stephenson has been developing PTFE release agents for over 40 years.  This class of release agent yields a uniform, dry film on the mold surface while also offering superior surface adhesion and durability.  PTFE mold release agents typically can last numerous molding cycles before re-application is necessary, and is ideal for compression and transfer molding operations.  One drawback is its relatively poor performance in injection molding, which requires surface slip that PTFE dry films cannot achieve. PTFE release agents are particular effective in potting and casting molding operations, specifically with electronic potting and casting as PTFE’s chemical inertness and low-transfer will not interfere with the sensitive electronics.

Why Choose MS-143TE | PTFE Mold Release Agents

Production engineers will typically choose PTFE release agent if they are looking for a non-silicone, chemical inert, and non-transferable release agent that is applicable across a broad range of substrates. PTFE, on a release per application basis is significantly more efficient and cost-effective than sacrificial or PVA alternatives.  Miller-Stephenson’s MS-122AV, MS-122SE, and MS-143TE are formulations which increase the durability and cost-effectiveness even further by addition of proprietary surface activation chemistry. Many can be considered universal release agent.

Miller-Stephenson offers a selection of specialized formulations which provide high performance solutions for your molding process.  All variants of the MS-122 Series will deliver higher productivity, lower rejection rates, and higher quality products.  Please use the product selection guide below to help direct you to the appropriate product.

If you would like more information on which mold release agent is right for you click here

For further reading regarding our ReleaSys product line and Applications – our most helpful article for selecting the best product for your needs

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

Physical Properties:

Primary Polymer:Fluoropolymer
Appearance:White particle suspension
Odor:Slight
Specific Gravity:1.31 g/mL @ 25°C
Ozone Depletion:0.00
VOC910 g/mL



The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

MS-143TE

MS-143TE-TDS

Download File

Release Agent Applications

MS-143TE formulation chemistry can be used to release the following materials and comes in concentrations ranging from 1-10 % PTFE.  It is very effective with Rubber to Metal bonding operations.

•          Plastics•          Rubbers
•          Resins•          Phenolics
•          Acrylics•          Polycarbonates
•          Urethanes•          Polystyrene
•          Nylons•          Elastomers

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

Quart, One Gallon, 5 Gallon, and 55 Gallon Drum
