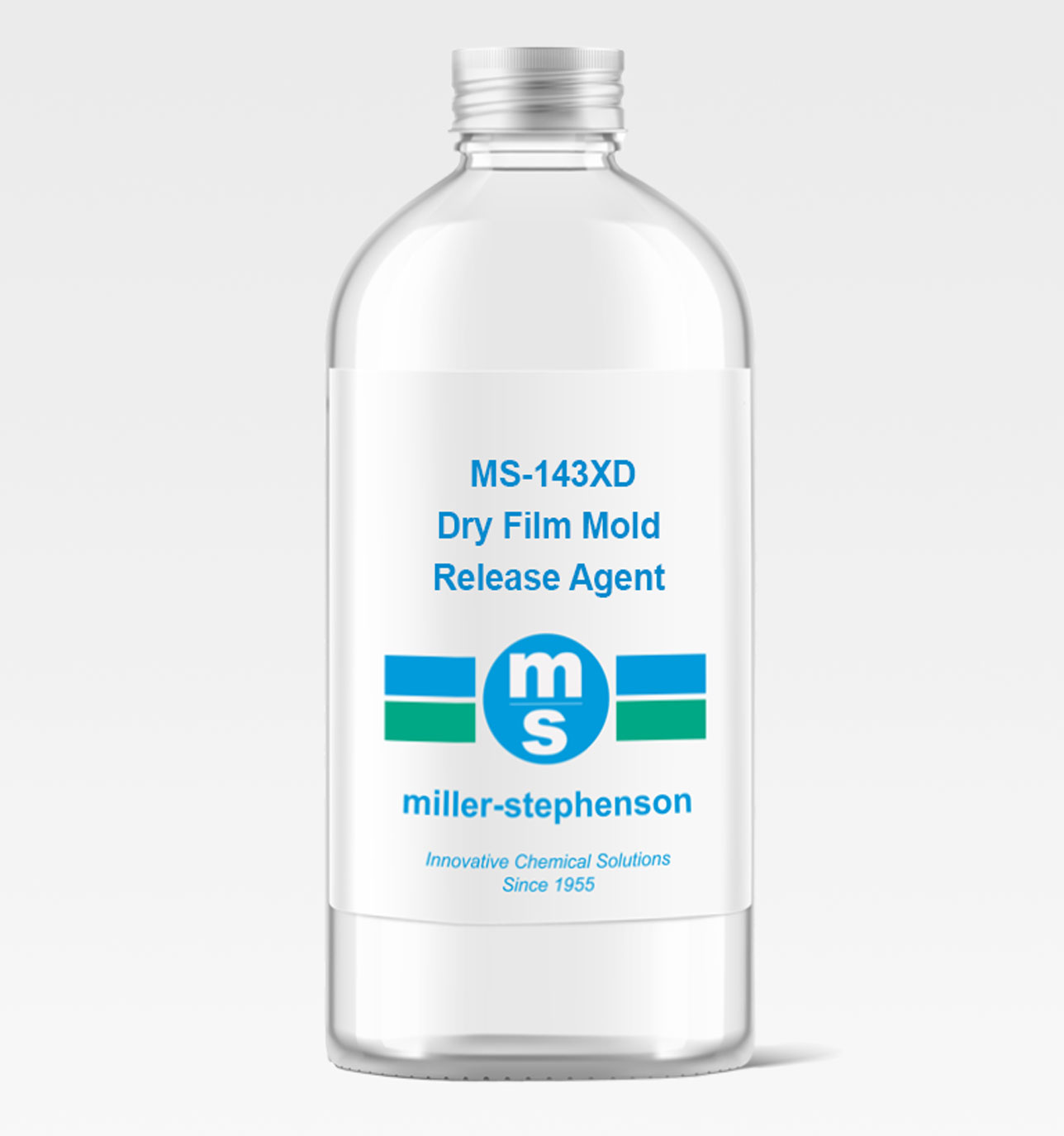

Dry Film Mold Release Agent | MS-143XD

Dry Film Mold Release Agent | MS-143XD

MS-143XD is a versatile and robust release agent / dry lubricant, which utilizes a rapidly drying, VOC exempt carrier solvent to enhance throughput and production efficiency. The formulation contains a high lubricity, low molecular weight PTFE fluoropolymer designed to not interfere with posting finishing operations.  MS-143XD offers the following benefits:

  • Efficient, consistent release of molded parts
  • Outstanding lubricity and minimization of slip-stick
  • VOC exempt formulation
  • Nonflammable, Non-ozone depleting
  • Non-migrating; Non-staining
CLICK HERE TO SEND INQUIRY OR REQUEST A QUOTE
Category: Tags: , , ,
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT

Dry Film Mold Release Agent | MS-143XD

Efficient, Consistent Release Properties; Fast-Drying; No VOC;

MS-143XD is a versatile and robust dry film mold release agent / lubricant, which utilizes a rapidly drying, VOC exempt carrier solvent to enhance throughput and production efficiency. The formulation contains a high lubricity, low molecular weight PTFE fluoropolymer designed to not interfere with posting finishing operations.  MS-143XD offers the following benefits:

  • Efficient, consistent release of molded parts
  • Outstanding lubricity and minimization of slip-stick
  • VOC exempt formulation
  • Nonflammable, Non-ozone depleting
  • Non-migrating; Non-staining

Miller-Stephenson has been developing PTFE release agents for over 40 years.  This class of release agent yields a uniform, dry film on the mold surface while also offering superior surface adhesion and durability.  PTFE mold release agents typically can last numerous molding cycles before re-application is necessary, and is ideal for compression and transfer molding operations.  One drawback is its relatively poor performance in injection molding, which requires surface slip that PTFE dry films cannot achieve. PTFE release agents are particular effective in potting and casting molding operations, specifically with electronic potting and casting as PTFE’s chemical inertness and low-transfer will not interfere with the sensitive electronics.

Production engineers will typically choose a PTFE Dry Film mold release agent if they are looking for a non-silicone, chemical inert, and non-transferable release agent that is applicable across a broad range of substrates. PTFE, on a release per application basis is significantly more efficient and cost-effective than sacrificial or PVA alternatives.  Miller-Stephenson’s MS-122AV and MS-122SE are formulations which increase the durability and cost-effectiveness even further by addition of proprietary surface activation chemistry.

Miller-Stephenson offers a selection of specialized formulations which provide high performance solutions for your molding process.  All variants of the MS-122 Series will deliver higher productivity, lower rejection rates, and higher quality products.  Please use the product selection guide below to help direct you to the appropriate product.

If you would like more information on which mold release agent is right for you click here

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

Physical Properties:

Primary Polymer:Fluoropolymer
Appearance:White particle suspension
Odor:Slight
Specific Gravity:1.58 g/mL @ 25°C
Ozone Depletion:0.00
VOCExempt



The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

MS-143XD

MS-143XD TDS

Download File

Release Agent Applications

MS-143XD can be used to release the following materials with virtually no transfer of the release agent:

•          Plastics•          Rubbers
•          Resins•          Phenolics
•          Acrylics•          Polycarbonates
•          Urethanes•          Polystyrene
•          Nylons•          Elastomers

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

Quart, One Gallon, 5 Gallon, and 55 Gallon Drum
