PTFE Mold Release Agent MS-122SE

PTFE Mold Release Agent | MS-122SE

MS-122SE is a high performance, high solvency mold release agent utilizing PTFE fluoropolymers (polytetrafluoroethylene) specifically designed for unsurpassed adhesion to mold surfaces and extended durability. The proprietary solvent blend ensures that proper wetting, leveling, and surface preparation occurs when applied yielding a durable, uniform thin-film.  MS-122SE offers the following benefits:

  • Superior adhesion to mold surfaces
  • High Solvency/Rapid Evaporating Carrier Fluid
  • Ideal for compression/injection molding
  • Nonflammable; Non-ozone depleting formulation
  • Non-migrating; Non-staining
CLICK HERE TO SEND INQUIRY OR REQUEST A QUOTE
Category: Tags: , , ,
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT

PTFE Mold Release Agent | MS-122SE

High-Performance PTFE; High Solvency Carrier Fluid; Exceptional Utility

MS-122SE is a high performance, high solvency PTFE Mold Release Agent specifically designed for unsurpassed adhesion to mold surfaces and extended durability. The proprietary solvent blend ensures that proper wetting, leveling, and surface preparation occurs when applied yielding a durable, uniform thin-film.  MS-122SE offers the following benefits:

  • Superior adhesion to mold surfaces
  • High Solvency/Rapid Evaporating Carrier Fluid
  • Ideal for compression/injection molding
  • Nonflammable; Non-ozone depleting formulation
  • Non-migrating; Non-staining

Miller-Stephenson has been developing PTFE release agents for over 40 years.  This class of release agent yields a uniform, dry film on the mold surface while also offering superior surface adhesion and durability.  PTFE mold release agents typically can last numerous molding cycles before re-application is necessary, and is ideal for compression and transfer molding operations.  One drawback is its relatively poor performance in injection molding, which requires surface slip that PTFE dry films cannot achieve. MS-122SE is particularky effective in potting and casting molding operations, specifically with electronic potting and casting as PTFE’s chemical inertness and low-transfer will not interfere with the sensitive electronics.

Why Choose MS-122SE | PTFE Mold Release Agent

Production engineers will typically choose PTFE mold release agent if they are looking for a non-silicone, chemical inert, and non-transferable release agent that is applicable across a broad range of substrates. PTFE, on a release per application basis is significantly more efficient and cost-effective than sacrificial or PVA alternatives.  Miller-Stephenson’s MS-122AV and MS-122SE are formulations which increase the durability and cost-effectiveness even further by addition of proprietary surface activation chemistry.

Miller-Stephenson offers a selection of specialized formulations which provide high performance solutions for your molding process.  All variants of the MS-122 Series will deliver higher productivity, lower rejection rates, and higher quality products.  Please use the product selection guide below to help direct you to the appropriate product.

If you would like more information on which mold release agent is right for you click here

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

Physical Properties:

Primary Polymer:Fluoropolymer
Appearance:White particle suspension
Odor:Slight
Specific Gravity:1.41 g/mL @ 25°C



The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

MS-122 SE

MS-122SE TDS

Download File

Release Agent Applications:

MS-122SE can be used in compression and transfer molding, it is particularly effective on contaminated molds.  MS-122SE can release the following materials:

•          Plastics•          Rubbers
•          Resins•          Phenolics
•          Acrylics•          Polycarbonates
•          Urethanes•          Polystyrene
•          Nylons•          Elastomers

The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.

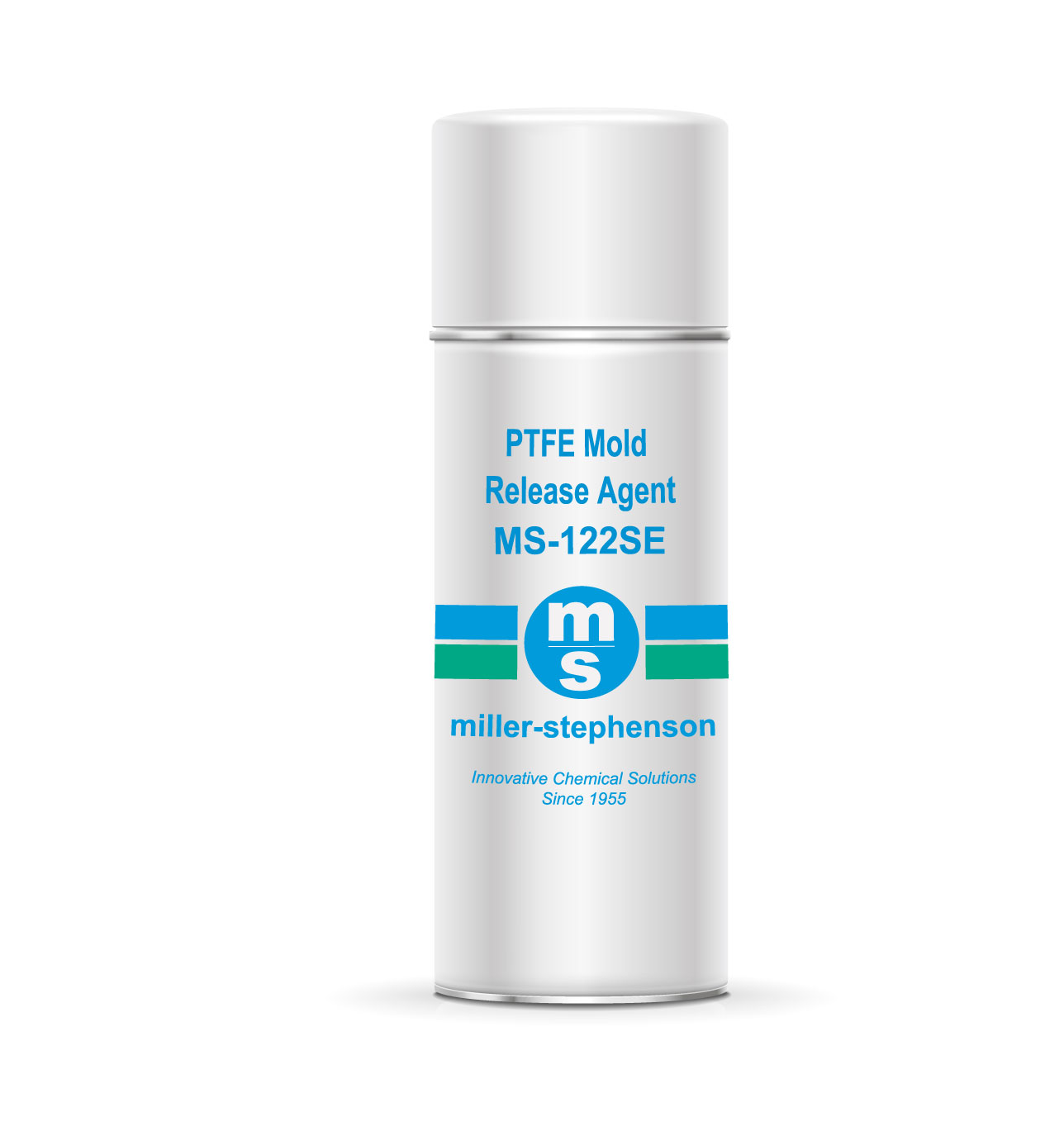

12 oz Aerosol
