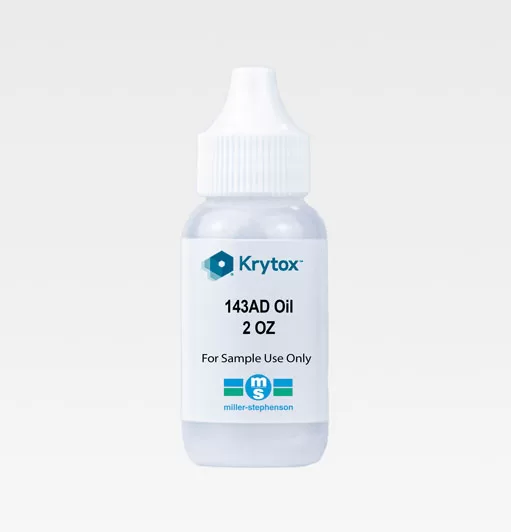

Krytox™ 143AD Oil
Krytox™ 143AD Oil has an estimated useful temperature range of -29°C to 316°C.
Krytox 143AD Oil | Designed for the Aerospace Industry
Superior Long Lasting Lubrication
Krytox 143AD oil is a clear, colorless, fluorinated synthetic oil that is non-reactive, 100% nonflammable, safe in chemical and oxygen service, and are long-lasting. Krytox is a perfluoropolyether (PFPE)—also called perfluoroalkylether (PFAE) or perfluoropolyalkylether (PFPAE). The polymer chain is completely saturated and contains only carbon, oxygen, and fluorine. On a weight basis, a typical Krytox™ oil contains 21.6% carbon, 9.4% oxygen, and 69.0% fluorine. All standard grades of grease are thickened with high efficiency PTFE, whose formula is (CF2-CF2)n. This special high efficiency thickener has a melting point of 325 °C (617 °F), and has low molecular weight and submicron (0.2 µ) particle size for higher performance in bearings.
Why Krytox 143AD Oil?
Krytox™ 240 series greases are white buttery greases with all of the same properties as our 143 series oils that they are made from, but they are in grease form. Krytox™ 250 series EP greases are black greases that contain molybdenum disulfide added as an extreme pressure additive for highly loaded gears and bearings. Krytox™ 283 series anticorrosion greases are white greases that contain sodium nitrite. These grades provide rust protection at ambient temperatures, corrosion protection at high temperatures, and antiwear protection. Krytox™ 240 AC, 240 AB, and 240 AZ Grade 1 greases now have NSF approval for incidental food contact (H-1) in and around food processing areas. These three products meet the requirements of Mil Spec PRF 27617, Types 1, 2, and 3.
Miller-Stephenson: Lubrication Experts, Superior Chemistry, Fast Delivery – a potent combination
At Miller-Stephenson, we understand the challenges engineers and scientists face with trying to select the best lubricant for current or new applications. With over 60 years of real-world experience, our highly trained team of technical experts and field engineers can assist you with identifying and selecting the optimal lubricant that best fits your operational parameter. Our large inventory of high-performance PFPE-base Krytox™ lubricants from Chemours, ensures we have the right lubricant for your needs, regardless of temperature, environment, safety, or performance of your system demands. For further information please review the articles below or contact a Miller-Stephenson representative.
Krytox™ is a trademark of The Chemours Company FC, LLC.
For more benefits and related articles:
To learn more about Krytox NSF H-1 Rated Food Grade Lubricants click here.
To learn more about Krytox Automotive Solutions click here.
For Widespread Use Across Product Lines: Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
Property | 143AZ | 143AA | 143AY | 143AB | 143AC | 143AD |
Viscosity @0°C | 228 | 350 | 620 | 1070 | 3940 | 7500 |
Viscosity @40°C | 22.8 | 32 | 50 | 78 | 243 | 450 |
Viscosity @100°C | 4.1 | 5.3 | 7.4 | 10.2 | 25.4 | 42.4 |
Temperature Range °C | -57-149 | -51-177 | -46-204 | -40-232 | -34-288 | -29-316 |
For Widespread Use Across Product Lines: Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
- Seals
- Valves
- Oxygen Devices
- O-Rings
- Threads
- Pumps
For Widespread Use Across Product Lines: Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
| Syringe | Dab-O-Matic | Needle Nose Bottle | Jar | Bottle | Jug |
| .5 oz. | 1 oz. | 1 oz. | .5 kg | 1 kg | 5 kg |
| 1 oz. | 2 oz. | 2 oz. | 20 kg | ||
| 2 oz. | 4 oz. | 4 oz. | |||
| 4 oz. |
