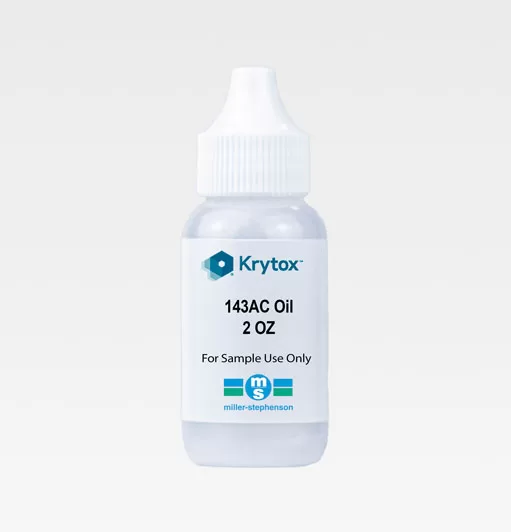

Krytox™ 143AC Oil
Krytox™ 143AC Oil has an estimated useful temperature range of -34°C to 288°C.
Krytox 143AC Oil | Designed for the Aerospace Industry
Superior Long Lasting Lubrication
Krytox 143AC oil is a clear, colorless, fluorinated synthetic oil that is non-reactive, 100% nonflammable, safe in chemical and oxygen service, and are long-lasting. Krytox is a perfluoropolyether (PFPE)—also called perfluoroalkylether (PFAE) or perfluoropolyalkylether (PFPAE). The polymer chain is completely saturated and contains only carbon, oxygen, and fluorine. On a weight basis, a typical Krytox™ oil contains 21.6% carbon, 9.4% oxygen, and 69.0% fluorine. All standard grades of grease are thickened with high efficiency PTFE, whose formula is (CF2-CF2)n. This special high efficiency thickener has a melting point of 325 °C (617 °F), and has low molecular weight and submicron (0.2 µ) particle size for higher performance in bearings.
Why Krytox 143AC Oil?
Krytox™ 240 series greases are white buttery greases with all of the same properties as our 143 series oils that they are made from, but they are in grease form. Krytox™ 250 series EP greases are black greases that contain molybdenum disulfide added as an extreme pressure additive for highly loaded gears and bearings. Krytox™ 283 series anticorrosion greases are white greases that contain sodium nitrite. These grades provide rust protection at ambient temperatures, corrosion protection at high temperatures, and antiwear protection. Krytox™ 240 AC, 240 AB, and 240 AZ Grade 1 greases now have NSF approval for incidental food contact (H-1) in and around food processing areas. These three products meet the requirements of Mil Spec PRF 27617, Types 1, 2, and 3.
Miller-Stephenson: Lubrication Experts, Superior Chemistry, Fast Delivery – a potent combination
At Miller-Stephenson, we understand the challenges engineers and scientists face with trying to select the best lubricant for current or new applications. With over 60 years of real-world experience, our highly trained team of technical experts and field engineers can assist you with identifying and selecting the optimal lubricant that best fits your operational parameter. Our large inventory of high-performance PFPE-base Krytox™ lubricants from Chemours, ensures we have the right lubricant for your needs, regardless of temperature, environment, safety, or performance of your system demands. For further information please review the articles below or contact a Miller-Stephenson representative.
Krytox™ is a trademark of The Chemours Company FC, LLC.
For more benefits and related articles:
To learn more about Krytox NSF H-1 Rated Food Grade Lubricants click here.
To learn more about Krytox Automotive Solutions click here.
The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.
Property | 143AZ | 143AA | 143AY | 143AB | 143AC | 143AD |
Viscosity @0°C | 228 | 350 | 620 | 1070 | 3940 | 7500 |
Viscosity @40°C | 22.8 | 32 | 50 | 78 | 243 | 450 |
Viscosity @100°C | 4.1 | 5.3 | 7.4 | 10.2 | 25.4 | 42.4 |
Temperature Range °C | -57-149 | -51-177 | -46-204 | -40-232 | -34-288 | -29-316 |
The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.
Aerospace Data Sheet
- Seals
- Valves
- Oxygen Devices
- O-Rings
- Threads
- Pumps
The recommendation made here with and the information set forth with respect to the performance or use of our products are believed, but not warranted to be accurate. The products discussed are sold without warranty, as to fitness or performance, express or implied and upon condition that purchasers shall make their own test to determine suitability of such products for their particular purposes. Likewise, statements concerning the possible uses of our products are not intended as recommendations to use our products in the infringement of any patent.
| Syringe | Dab-O-Matic | Needle Nose Bottle | Jar | Bottle | Jug |
| .5 oz. | 1 oz. | 1 oz. | .5 kg | 1 kg | 5 kg |
| 1 oz. | 2 oz. | 2 oz. | 20 kg | ||
| 2 oz. | 4 oz. | 4 oz. | |||
| 4 oz. |
