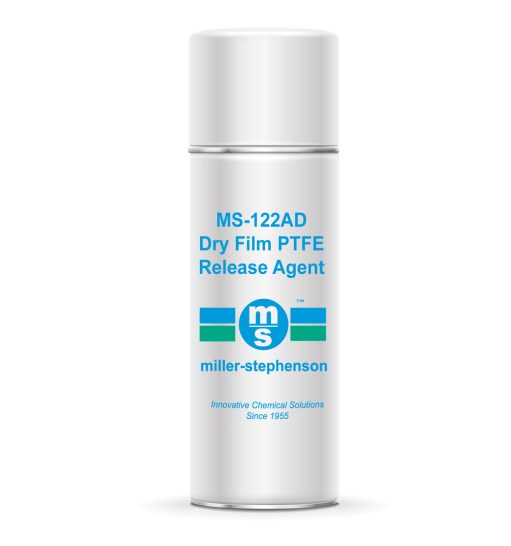

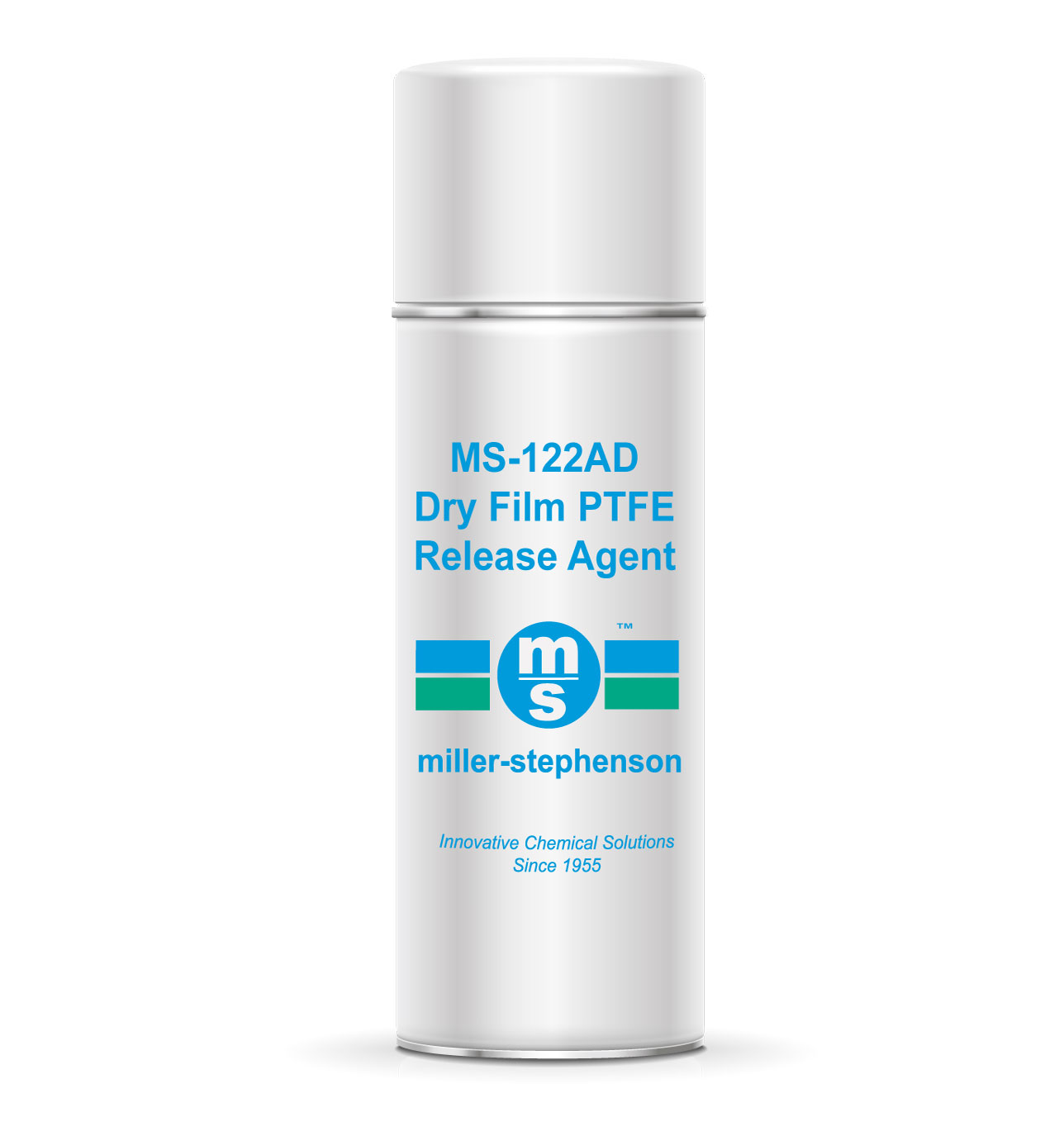

Dry Film PTFE Release Agent | MS-122AD
$51.01
MS-122AD was developed as an efficient, economical and universal release agent and dry lubricant. This formulation contains a high lubricity, low molecular weight PTFE fluoropolymer specialized for mold release and dry lubricant applications. A nonflammable, non-ozone depleting carrier solvent / propellant mixture ensures all environmental regulations are met.
SKU: A122AD
Categories: PTFE Aerosol (MS-122), PTFE Dry Film Lubricants
Tags: dry film lubricant, Dry film ptfe release agent, Dry Lubricant, MS-122AD, ptfe, Release Agent
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCTDry Film PTFE Release Agent | MS-122AD
Excellent Release Properties; Unmatched Dry Lubricant; Cost-Effective
MS-122AD was developed as an efficient, economical and universal dry film PTFE release agent / dry lubricant. This formulation contains a high lubricity, low molecular weight PTFE fluoropolymer specialized for mold release and dry lubricant applications. A nonflammable, non-ozone depleting carrier solvent / propellant mixture ensures all environmental regulations are met. MS-122AD offers the following benefits:
- Cost-effective release of molded parts
- Outstanding lubricity and minimization of slip-stick
- Nonflammable, Non-ozone depleting formulation
- Non-migrating; Non-staining
As a Release Agent: Highly effective when applied to rubber molds. It provides a very uniform, thin coating, ideal for routine mold release operations.
As a Dry Lubricant: Our best dry lubricant, for all applications; may be used on all surfaces, especially where there is metal on metal contact. It provides elimination of “slip-stick” and low coefficient of friction.
Miller-Stephenson has been developing PTFE release agents for over 40 years. This class of release agent yields a uniform, dry film on the mold surface while also offering superior surface adhesion and durability. PTFE mold release agents typically can last numerous molding cycles before re-application is necessary, and is ideal for compression and transfer molding operations. One drawback is its relatively poor performance in injection molding, which requires surface slip that PTFE dry films cannot achieve. PTFE release agents are particularly effective in potting and casting molding operations, specifically with electronic potting and casting as PTFE’s chemical inertness and low-transfer will not interfere with the sensitive electronics.
Why choose MS-122AD | Dry Film PTFE release agent
Production engineers will typically choose Dry film PTFE release agent if they are looking for a non-silicone, chemical inert, and non-transferable release agent that is applicable across a broad range of substrates. PTFE, on a release per application basis, is significantly more efficient and cost-effective than sacrificial or PVA alternatives. Miller-Stephenson’s MS-122AV and MS-122SE are formulations which increase the durability and cost-effectiveness even further by addition of proprietary surface activation chemistry.
Miller-Stephenson offers a selection of specialized formulations that provide high performance solutions for your molding process. All variants of the MS-122 Series will deliver higher productivity, lower rejection rates, and higher quality products. Please use the product selection guide below to help direct you to the appropriate product.
Technical or Application Support:
If you would like more information on which mold release agent is right for you click here
If you require any further technical or application support please contact our technical specialists
Learn more about our line of MS-122 Dry Film Lubricants: Dry Film Lubricant Aerosols
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
Physical Properties
| Primary Polymer | Fluoropolymer |
| Appearance | White Particle |
| Odor | Slight |
| Specific Gravity | 1.20 g/mL @ 25°C |
| Ozone Depletion Potential | 0 |
| VOC | 84 g/l |
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 2.5 × 8.5 in |
MS-122AD
(pdf, 32KB)
MS-122AD TDS
Release Agent Applications
MS-122AD can be used to release the following materials with virtually no transfer of the release agent:
| • Plastics | • Rubbers |
| • Resins | • Phenolics |
| • Acrylics | • Polycarbonates |
| • Urethanes | • Polystyrene |
| • Nylons | • Elastomers |
Dry Lubricant Applications
- Gears, drive belts and gaskets.
- Wire and cable.
- Thread, cord and rope.
- Chain drives.
- Metalworking, including extrusion, rolling, drawing and sizing.
- Machine parts and tools, including nuts, bolts, thread connections, locks, power saw blades and machine mechanisms.
- Hardware, including hinges, locks and catches, window guides, and guides on cabinet drawers
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
- 13.50 oz. Aerosol
