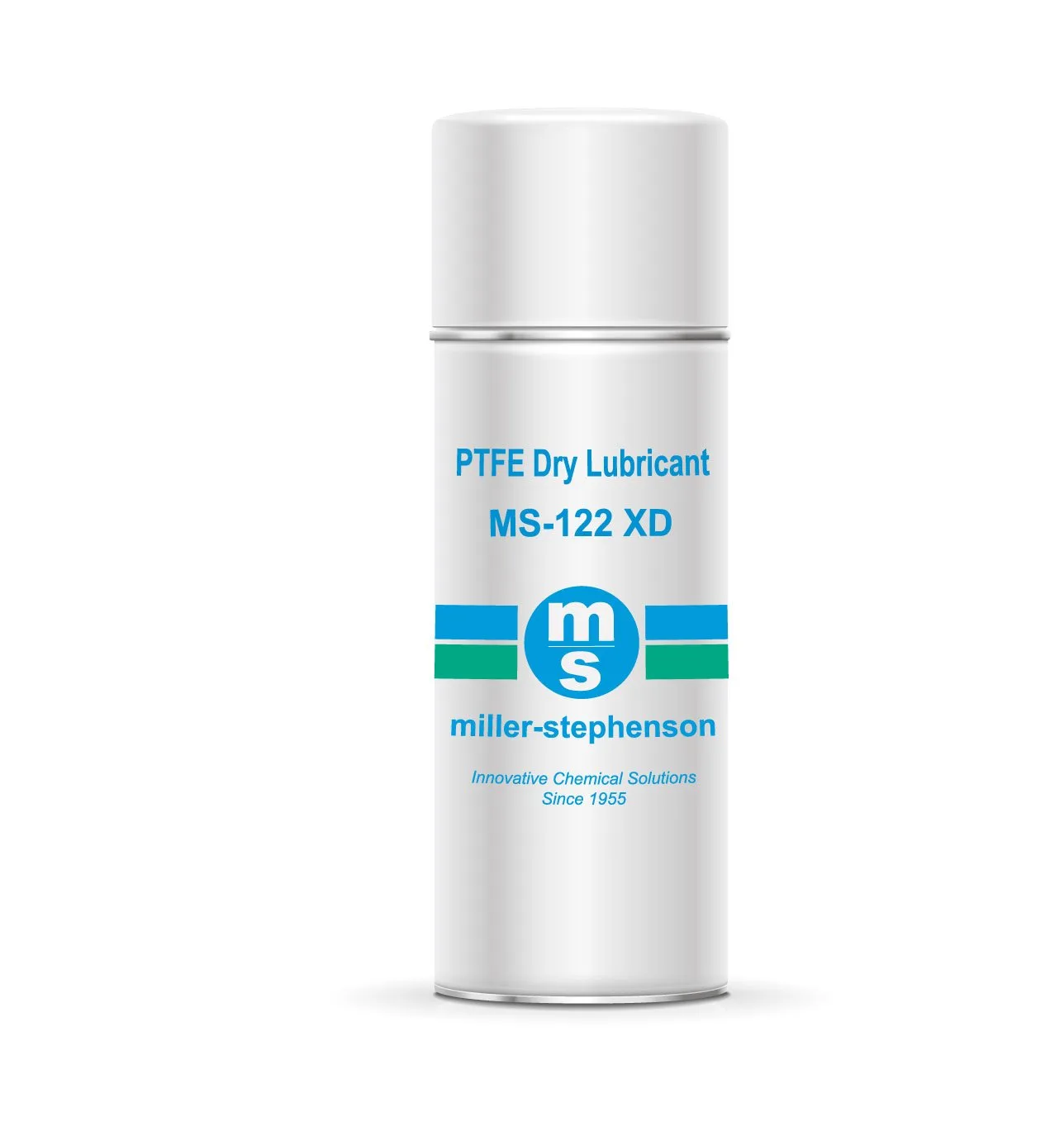

PTFE Dry-Film Lubricant | MS-122XD
$59.62
MS-122XD was designed as an efficient, durable, and universal dry film lubricant with superior release and non-stick characteristics. Has the fastest dry time of all the products in the 122 series with the most refined final ultra-thin film properties
SKU: A122XD
Categories: PTFE Aerosol (MS-122), PTFE Dry Film Lubricants
Tags: Dry Film, dry film lubricant, Dry Lubricant, MS-122XD, ptfe, ptfe dry-film lubricant
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCTPTFE Dry-Film Lubricant | MS-122XD
Superior Dry-Film Lubricant System, 100% Non-Flammable, VOC-exempt aerosol
PTFE Dry-Film Lubricant, MS-122XD / Release Agent that contains a suspension of low molecular weight polytetrafluoroethylene (PTFE) fluoropolymers – white, waxy particles of PTFE in an easy to apply form. The outstanding lubricity and low coefficient of friction of PTFE is perfect for use as a dry film lubricant and as a release agent in molding operations. MS-122XD and MS-143XD are excellent release agents with the added advantage of superior release action in the initial cycles. They work well for all applications. As a dry lubricant, they are a very good general purpose lubricant, which produces a uniform coating, good surface adhesion, and minimization of mechanical wear. MS-122XD offers the following benefits:
- Efficient dry lubricant with low coefficient of friction
- Fast dry time leaving a lubricous, robust, and ultra-thin film coating
- Utilizes proprietary, low molecular weight PTFE
- Zero to minimal transfer and non-staining as a release agent
- Non-flammable; 100% non-ozone depleting
MS-122XD PTFE Dry-Film Lubricant has a variety of usages including as a release agent and dry lubricant. With a fast-dry time, vast material compatibility, and durability it is no surprise there are so many applications where the MS-122XD is the ideal choice.
As a Dry Lubricant: A very good general-purpose dry lubricant for all applications. Produces a uniform, robust, and durable coating.
As a Release Agent: An excellent release agent with the added advantage of superior release action in the initial cycles. Works well for all applications. Produces a uniform coating, lower rejection rates, and higher quality products.
Why Choose MS-122XD PTFE Dry-Film Lubricant
MS-122XD is the PTFE dry film lubricant of choice by many engineers who are looking for a coating that is superior to other silicone, sacrificial, or PVA options. By utilizing our proprietary low molecular weight PTFE and optimized chemical formulation a uniform, fast-drying, and ultra-thin coating is achieved. Additional advantageous properties of this PTFE dry-film lubricant include being chemically inert, non-transferable, and superior surface adhesion. The MS-122XD is the dry lubricant of choice by many major automotive, aviation, and aerospace companies to be used as a long-lasting and safe solution. Some proven applications include assembly line lubricant (especially metal on metal contact), window seals, and releasing high-quality parts.
Technical or Application Support:
- For any questions about proper application of our mold release products please view our article which discusses this process
- If you require any further technical or application support please contact our technical staff
- The MS-122 Series will deliver higher productivity, lower rejection rates, and higher quality products.
- To learn more about our versatile MS-122 series product line please view our article.
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
- Slippery, with outstanding lubricity (low coefficient of friction).
- Thermally stable (from cryogenic to 500ºF/260ºC).
- Nonflammable.
- Chemically inert.
- Insoluble.
- Non-migrating (contain no silicones).
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 2.5 × 8.5 in |
MS-122XD
(pdf, 33KB)
MS-122XD TDS
MS-122XD – Superior Release Ease, Universal Applicability
MS-122XD can be used to release the following materials with virtually no transfer of the release agent:
| • Plastics | • Rubbers |
| • Resins | • Phenolics |
| • Acrylics | • Polycarbonates |
| • Urethanes | • Polystyrene |
| • Nylons | • Elastomers |
PTFE Dry-Film Lubricant Applications
As a dry lubricant, MS-122XD is applicable on a variety of materials and will afford unmatched lubricity and wear resistance. These materials include:
| • Metal | • Ceramics |
| • Glass | • Elastomers |
| • Rubber | • Polycarbonates |
| • Wood |
Some proven applications of the MS-122XD as a dry lubricant are:
- Gears, drive belts, and gaskets.
- Wire and cable.
- Thread, cord, and rope.
- Chain drives.
- Metalworking, including extrusion, rolling, drawing and sizing.
- Machine parts and tools, including nuts, bolts, thread connections, locks, power saw blades and machine mechanisms.
- Hardware, including hinges, locks and catches, window guides, and guides on cabinet drawers.
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
MS-122XD (14 oz Aerosol)
MS-143XD (Qt, Gal, 5G, 55G)
