PCB coating

Showing all 9 results

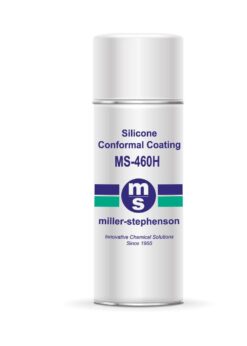

Silicone Conformal Coating

MS-460H | Silicone Conformal Coatings

Miller-Stephenson's Silicone Conformal Coating is a transparent, soft, flexible coating which offers excellent moisture resistance, good dielectric properties, and excellent light transmission capabilities for solar applications.  It has good weatherability and resistance to U.V. light and dirt pick-up.  This coating can be "solder-through" for easy repair. Contains Dow Corning 1-2577 silicone resin. This silicone resin meets the requirements of MIL-I-46058C, Type SR, IPC-CC-830B and  UL 746E approva. It is also compatible with WEEE and RoHS.

MORE INFO

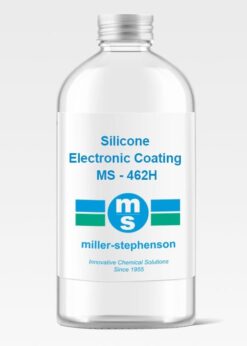

Silicone Conformal Coating

MS-462H

Miller-Stephenson’s Silicone Conformal Coating is a transparent, soft, flexible coating which offers excellent moisture resistance, good dielectric properties, and excellent light transmission capabilities for solar applications.  It has good weatherability and resistance to U.V. light and dirt pick-up.  This coating can be “solder-through” for easy repair. Contains Dow Corning 1-2577 silicone resin. This silicone resin meets the requirements of MIL-I-46058C, Type SR, IPC-CC-830B and  UL 746E approva. It is also compatible with WEEE and RoHS.

MORE INFO

Acrylic Conformal Coating

MS-465C | Acrylic Conformal Coating

Miller-Stephenson's Acrylic Conformal Coating is a non-flammable, tough, fast drying, abrasion resistant coating providing protection against caustics and corrosives. The methacrylate copolymer resin offers excellent resistance to water, alcohol, dilute acids & alkalis, chemical fumes and corrosive or oxidizing environments. It offers excellent weatherability and superior abrasion resistance. The resin water-white in color and transparency, with high gloss and hardness which is solderable for ease of repair.

  • Excellent toughness and abrasion resistance
  • Resistant to alcohol and caustics
  • 100% Non-flammable formulation
  • Fast drying & Easy Curing Acrylic Coating

MORE INFO

Acrylic Conformal Coating

MS-467C

Miller-Stephenson’s Acrylic Conformal Coating is a non-flammable, tough, fast drying, abrasion resistant coating providing protection against caustics and corrosives. The methacrylate copolymer resin offers excellent resistance to water, alcohol, dilute acids & alkalis, chemical fumes and corrosive or oxidizing environments. It offers excellent weatherability and superior abrasion resistance. The resin water-white in color and transparency, with high gloss and hardness which is solderable for ease of repair.

MORE INFO

Urethane Conformal Coating

MS-470C | Urethane Conformal Coatings

Miller-Stephenson's Urethane Conformal Coating offers superior toughness and abrasion resistance and excellent protection from humidity and organic solvents. Urethane resins are very hard and resistant to mechanical wear, their hardness is second only to epoxy conformal coatings. However urethanes are much easier to be reworked than an epoxy. Miller-Stephenson's Urethane Conformal Coating have the following benefits:

  • Superior toughness and abrasion resistance
  • Reworkable and room temperature cure
  • Solvent and discoloration resistant
  • Fluorescent under UV light
  • No cracking or crazing with vibration

MORE INFO

Urethane Conformal Coating

MS-472C | Urethane Coating

Miller-Stephenson’s Urethane Conformal Coating offers superior toughness and abrasion resistance and excellent protection from humidity and organic solvents. Urethane resins are very hard and resistant to mechanical wear, their hardness is second only to epoxy conformal coatings. However urethanes are much easier to be reworked than an epoxy. Miller-Stephenson’s Urethane Conformal Coating have the following benefits:

  • Reworkable and room temperature cure
  • Solvent and discoloration resistant
  • Fluorescent under UV light
  • No cracking or crazing with vibration
  • Superior toughness and abrasion resistance

MORE INFO

Acrylic Conformal Coating

MS-475C | Acrylic Conformal Coatings

Miller-Stephesons' Acrylic Conformal Coating offers superior toughness and abrasion resistance, excellent dielectric properties, fungal resistance, and moisture and environmental protection. Our formulation is 100% non-flammable. Printed circuit boards covered with acrylic coatings are repairable.  Simply heat the coating with a soldering iron to remove the components. MS-475C will cover 6.4 sq. ft. at a 2 mil. thickness per 14 oz. aerosol can.

MORE INFO

Acrylic Conformal Coating

MS-477C | Acrylic Conformal Coating

Miller-Stephesons’ Acrylic Conformal Coating offers superior toughness and abrasion resistance, excellent dielectric properties, fungal resistance, and moisture and environmental protection. Our formulation is 100% non-flammable. Printed circuit boards covered with acrylic coatings are repairable.  Simply heat the coating with a soldering iron to remove the components. MS-477C, the bulk liquid version will cover 91 sq. ft. per gallon at a 2 mil. thickness when applied via dip, brush, or spray

MORE INFO

ShieldSys™ 462S is a high performance silicone conformal coating utilizing exclusive Miller-Stephenson next-generation silicone RTV chemistry.  Offering superior protection, toughness, and abrasion resistance while combining the simplicity of a one-part, room temperature cure coating.  Conforming to MIL-SPEC 46058C, the applied coating is self-levelling with excellent wet-out, allowing for a very forgiving application process amendable to a wide-range of application configurations without sacrificing coating quality or final film properties.  Tack free time is less than 10 minutes. Benefits include:

  • High Performance Silicone Conformal Coating
  • Excellent Thermal and Abrasion Resistance
  • Ideal for High Vibration, High Moisture, or Heat Challenged PCBs
  • Superior Self-Levelling and Excellent Flow-out
  • One-Part, Self-Priming, Room Temperature Cure System

MORE INFO
