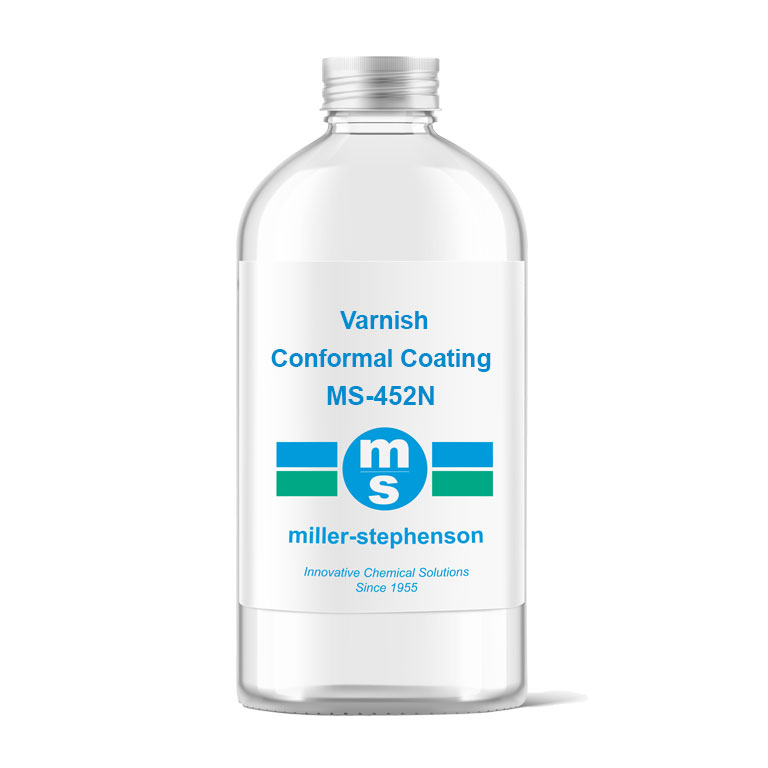

Varnish Conformal Coating | MS-452N
$151.73 – $487.24
MS-452N Protective Varnish is designed for adverse environmental conditions and offers excellent moisture, oil, chemical, and fungal resistance with good flexibility. Miller-Stephenson’s Varnish coating has excellent electrical insulation and moisture/fungus resistant properties making it ideal for use on stators, transformers, field coils, printed circuits, completed electric assemblies, junction boxes and cables.
Varnish Conformal Coating | MS-452N
MS-452N Varnish Conformal Coating is a special protective coating designed for adverse environmental conditions and offers excellent moisture, oil, chemical, and fungal resistance with good flexibility. Miller-Stephenson’s Varnish coating has excellent electrical insulation and moisture/fungus resistant properties making it ideal for use on stators, transformers, field coils, printed circuits, completed electric assemblies, junction boxes and cables.
Conformal coatings are hard, moisture resistant materials that lack the flexibility of the above materials, and also have greater variations in insulative properties and stability. These products are usually made of lower molecular weight polymers which affect the performance properties and quality of the product.
http://miller-stephenson.com/conformal-coating/
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
Cured Electrical Properties
| Dielectric Strength, volts/mil (Dry) | 1800 |
| Dielectric Strength, volts/mil (Wet) | 1200 |
Chemical Resistance
| Water | Excellent |
| Acid (10% Sulfuric Acid) | Excellent |
| Alkali | Excellent |
| Salt Water | Excellent |
| Oil, ASTM D-115 | PASS |
| Corrosive effect on Copper | None |
Physical Properties
| Highest Operating Temperature | 331F / 155C |
| Fungus Resistance | PASS |
| Fluorescent | Under UV light |
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Bulk Sizes | Quart, 1 Gallon |
MS-452N can be applied by dipping, brushing or spraying. For spraying applications, it is usually thinned 20-25% by weight with Xylene. The resin dries in 30 minutes and is fully cured in 24 hours.
Notwithstanding any express or implied indication to the contrary, product information provided on or via this website is supplied upon the condition that the persons receiving such information will make their own, independent determination as to a given product’s suitability for any contemplated purposes prior to use. In no event will Miller-Stephenson be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information provided, directly or indirectly, on this website in relation to any product and/or application.
Quart, Gallon, 5 Gallon, 55 Gallon drum
