Submit QuoteMiller-Stephenson’s Acrylic Conformal Coating
Miller-Stephenson’s Acrylic conformal coating is a tough, abrasion resistant coating providing excellent electrical insulation against high voltage arcing and corona shorts. Dries fast, protects against caustics and corrosives. May be “soldered-through” for ease of repair. Easily removed by solvents. Includes an ultraviolet (UV) indicator. No ODC (ozone depleting chemicals). Miller-Stephenson conformal coating formulations are 100% non-flammable, low odor and low VOC.
Acrylic conformal coatings are most user-friendly of all conformal coating materials due to their ease of application, removal and “repair-through” coating. Acrylics dry and cure rapidly, reaching optimum physical properties in minutes and full cure in less than hour. Additionally, acrylics give off little or no heat during cure, eliminating potential damage to heat-sensitive components, while also expressing minimal shrinkage during cure, exhibiting low glass transition temperatures. One disadvantage is there susceptibility to chemical dissolving upon exposure to isopropyl alcohol or xylene, which are relatively weak solvents. For increased chemical resistance we recommend our Silicone or Urethane Conformal Coating.
Acrylic Conformal Coatings
Miller-Stephenson’s Acrylic Conformal Coating is a non-flammable, tough, fast drying, abrasion resistant coating providing protection against caustics and corrosives. The methacrylate copolymer resin offers excellent resistance to water, alcohol, dilute acids & alkalis, chemical fumes and corrosive or oxidizing environments. It offers excellent weatherability and superior abrasion resistance. The resin water-white in color and transparency, with high gloss and hardness which is solderable for ease of repair.
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT
Acrylic Conformal Coatings

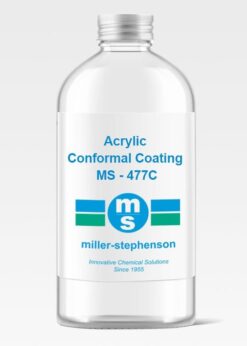

Miller-Stephesons’ Acrylic Conformal Coating offers superior toughness and abrasion resistance, excellent dielectric properties, fungal resistance, and moisture and environmental protection. Our formulation is 100% non-flammable. Printed circuit boards covered with acrylic coatings are repairable. Simply heat the coating with a soldering iron to remove the components. MS-477C, the bulk liquid version will cover 91 sq. ft. per gallon at a 2 mil. thickness when applied via dip, brush, or spray
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT
Acrylic Conformal Coatings

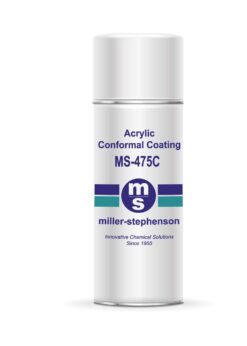

Miller-Stephesons' Acrylic Conformal Coating offers superior toughness and abrasion resistance, excellent dielectric properties, fungal resistance, and moisture and environmental protection. Our formulation is 100% non-flammable. Printed circuit boards covered with acrylic coatings are repairable. Simply heat the coating with a soldering iron to remove the components. MS-475C will cover 6.4 sq. ft. at a 2 mil. thickness per 14 oz. aerosol can.
CLICK HERE TO CHAT WITH AN EXPERT ABOUT THIS PRODUCT
Acrylic Conformal Coatings
Miller-Stephenson's Acrylic Conformal Coating is a non-flammable, tough, fast drying, abrasion resistant coating providing protection against caustics and corrosives. The methacrylate copolymer resin offers excellent resistance to water, alcohol, dilute acids & alkalis, chemical fumes and corrosive or oxidizing environments. It offers excellent weatherability and superior abrasion resistance. The resin water-white in color and transparency, with high gloss and hardness which is solderable for ease of repair.
- Excellent toughness and abrasion resistance
- Resistant to alcohol and caustics
- 100% Non-flammable formulation
- Fast drying & Easy Curing Acrylic Coating
